D-BAR

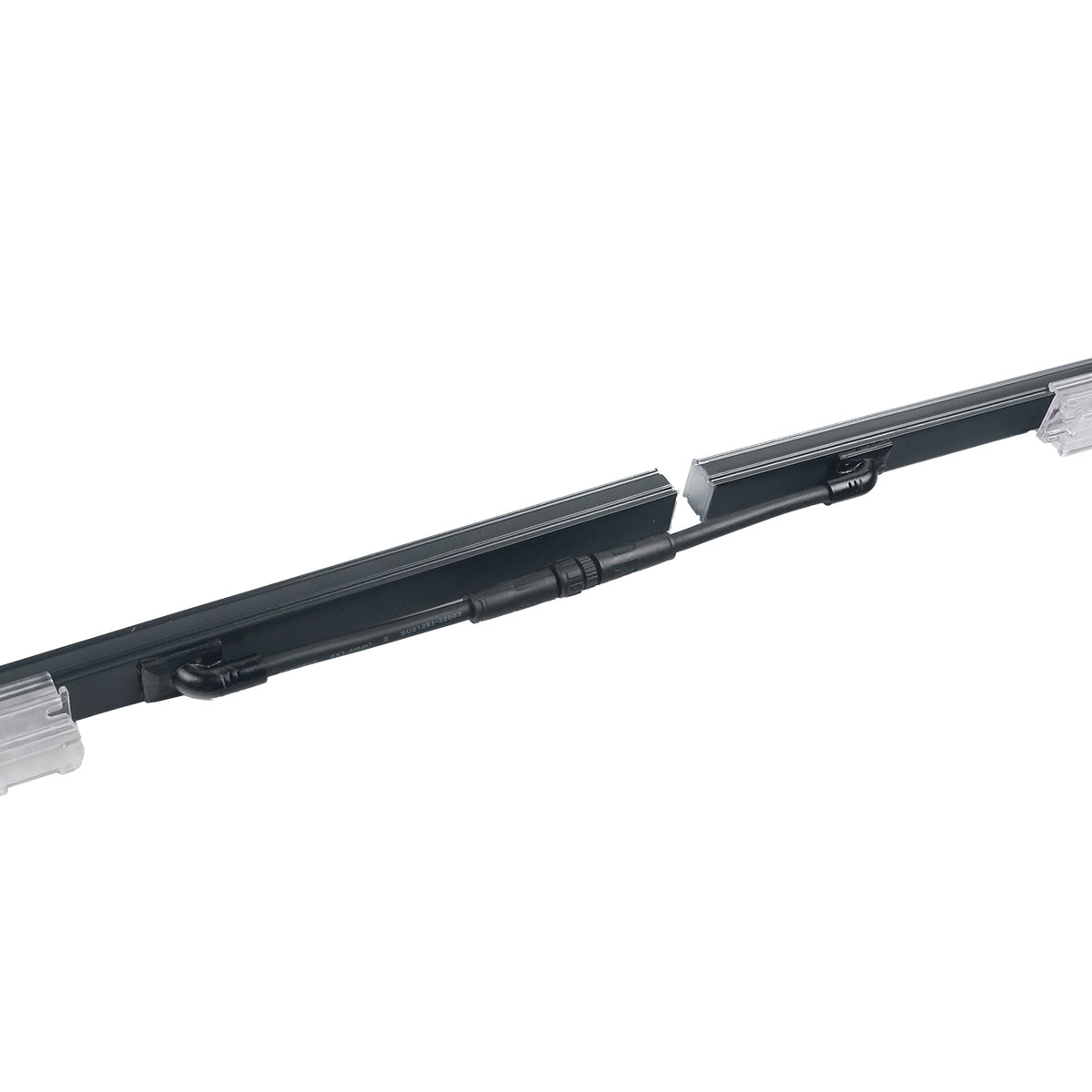

With D-BAR, which is included in the IP66 protection class, you can create an effective contour effect, especially in linear facade lighting. D-BAR cove lighting which offers easy and trouble-free installation option with IP sockets it provides a wide range of advantages by being used in decorative landscaping objects such as railings, step lighting or seating benches.
-
Product Description
-
Technicial Specifications
-
Download Center
-

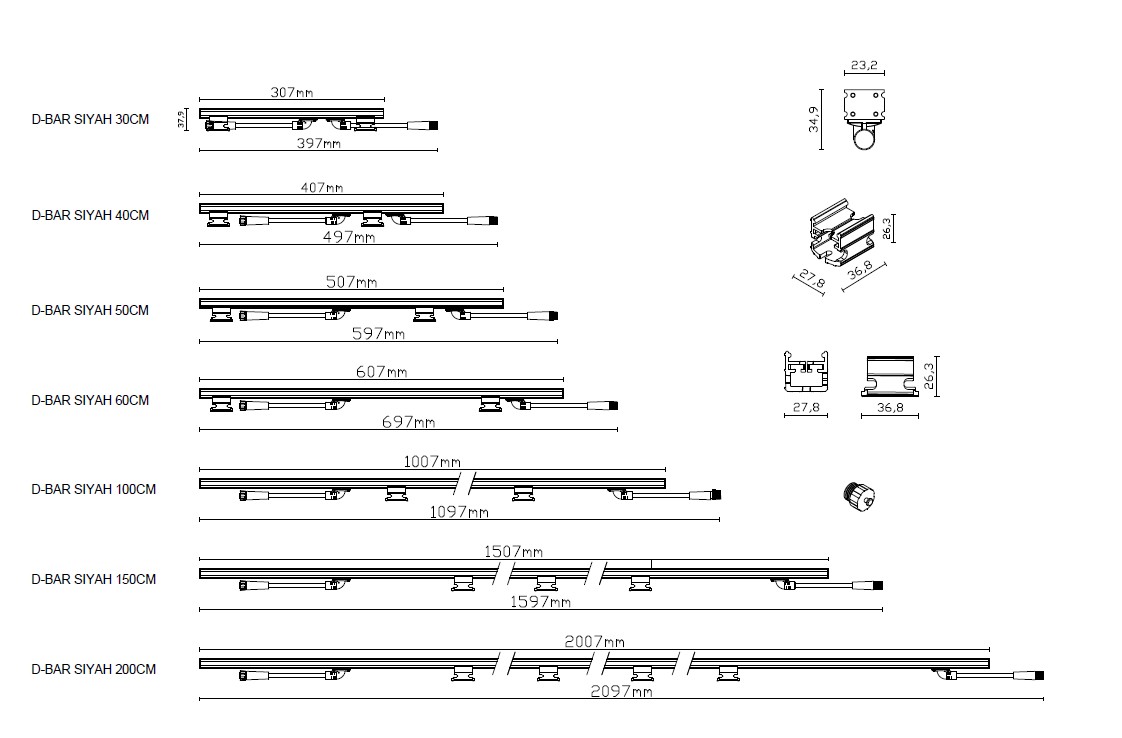

Datasheets
With D-BAR, which is included in the IP66 protection class, you can create an effective contour effect, especially in linear facade lighting. D-BAR cove lighting which offers easy and trouble-free installation option with IP sockets it provides a wide range of advantages by being used in decorative landscaping objects such as railings, step lighting or seating benches.
| Housing | UV Protection Polycarbonate / Grey |
| Optical | Polycarbonate Diffuser |
| Optical Angles | 126° |
| IP Protection Class | IP66 |
| IK Impact Resistance Class | IK10 |
| Input Voltage | 24 V DC |
| Consumption Power | 10 W / mt |
| Source of Light | SMD LED |
| Color Temperature | 3000K / 4000K / 6500K |
| CRI | >70 |
| Working Ambient Temperature | 25°C / 45°C |
| Body Colors | UV Protection Polycarbonate / Grey |
| Mounting Type | Cove Lighting / Surface Mounted |
