EX - COR ZONE 2.22

Safe and Efficient Lighting for Harsh Environments.

Ex-Cor is a highly protected and efficient Ex-proof LED luminaire developed for Zone 2 and Zone 22 hazardous areas.

  • Product Description

  • Technicial Specifications

  • Download Center

  • Datasheets

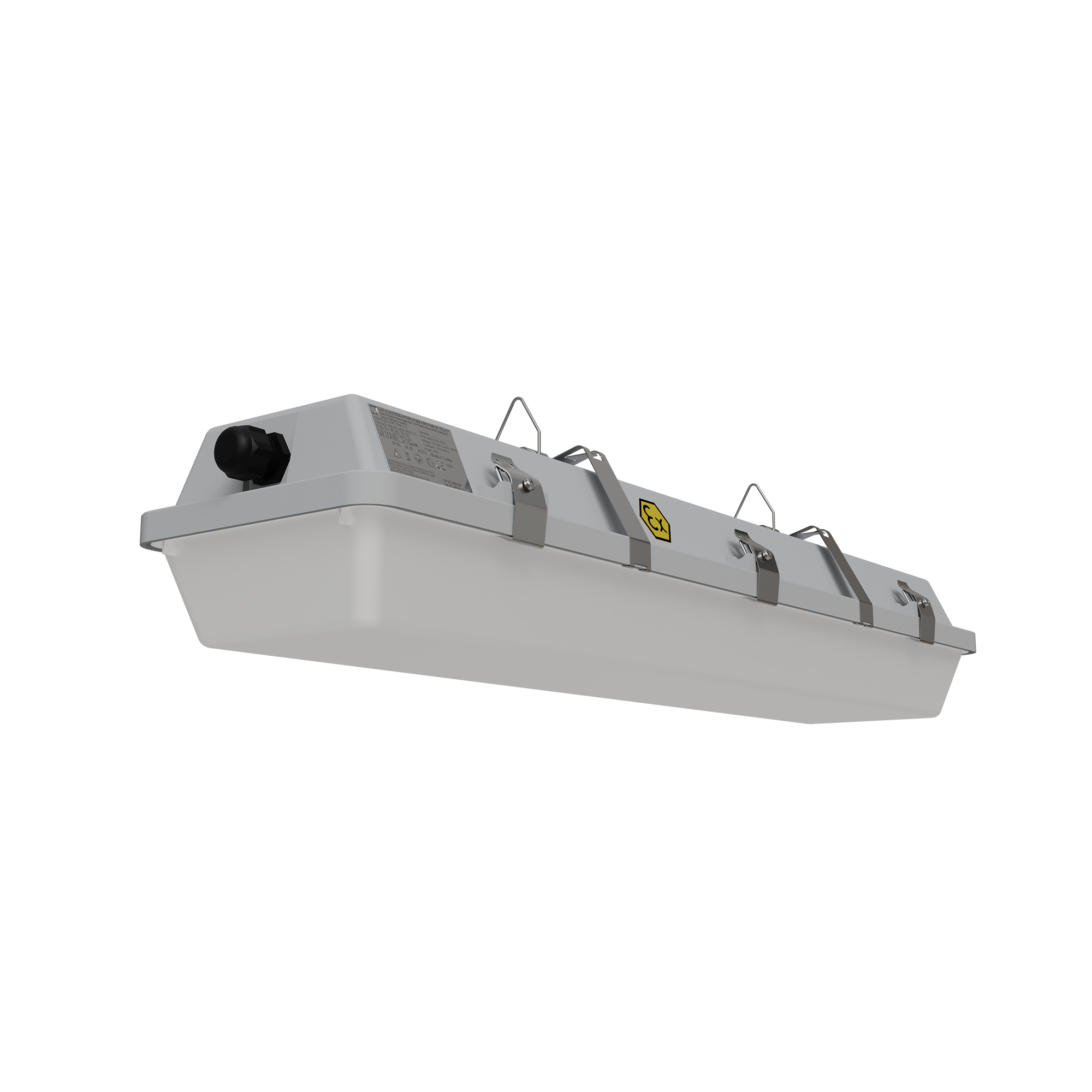

Ex-Cor is an explosion-proof LED luminaire engineered for use in explosive gas (Zone 2) and dust (Zone 22) atmospheres. Featuring a GRP body and a polycarbonate diffuser, it combines lightweight construction with durability. With IP65 and IK08 protection ratings, it withstands dust, water, and impact. The Mid Power LED source is available in multiple wattages (29W–81W) and offers a full range of color temperatures from warm to cool (2700K–6500K). With CRI>80, it delivers natural color rendering. Operating reliably between -20°C and +50°C, and finished in RAL 7035, Ex-Cor is ideal for industrial lighting demands.

Housing GRP Housing
Diffusuer PC Diffuser
Optik Angles -
IP Grade IP65
IK Impact Resistance IK08
Input Voltage 220-240V AC 50/60 Hz
Power 29W / 40W / 51W / 60W / 72W / 81W
Light Source Mid Power LED
Color Temperature 2700K / 3000K / 4000K / 5000K / 5700K / 6500K
CRI >80
Operating Tempature Range -20 °C/+50 °C
Housing Colors RAL 7035
Exproof Application Class Zone 2 / 22
Equipment Category 3G / 3D
Equipment Protection Level Gc / Dc
Explosion Group IIC / IIIC
Temperature Class T6
Protection Type nr / tc
Installation Surface Mounting
