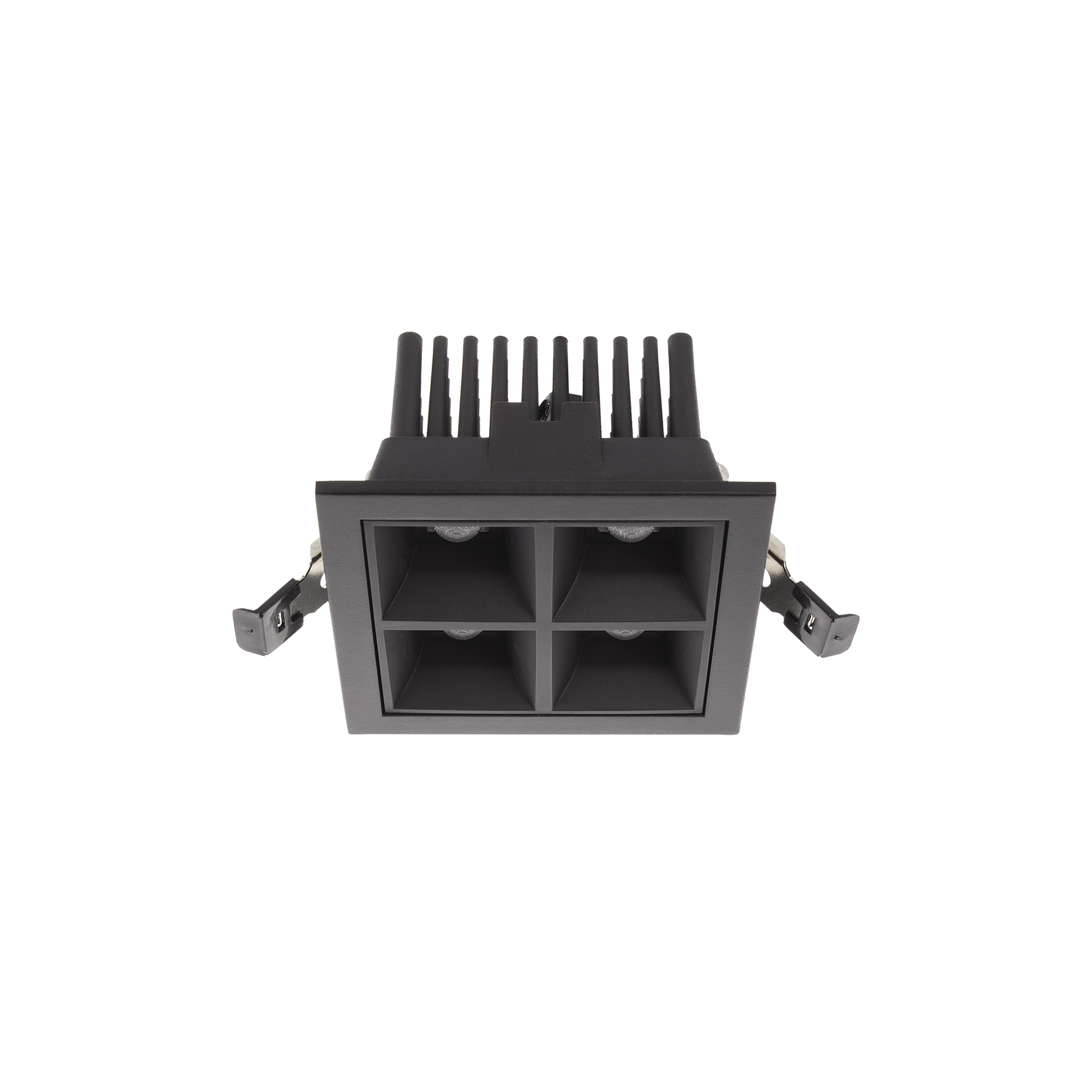

GIZA Recessed 65/20

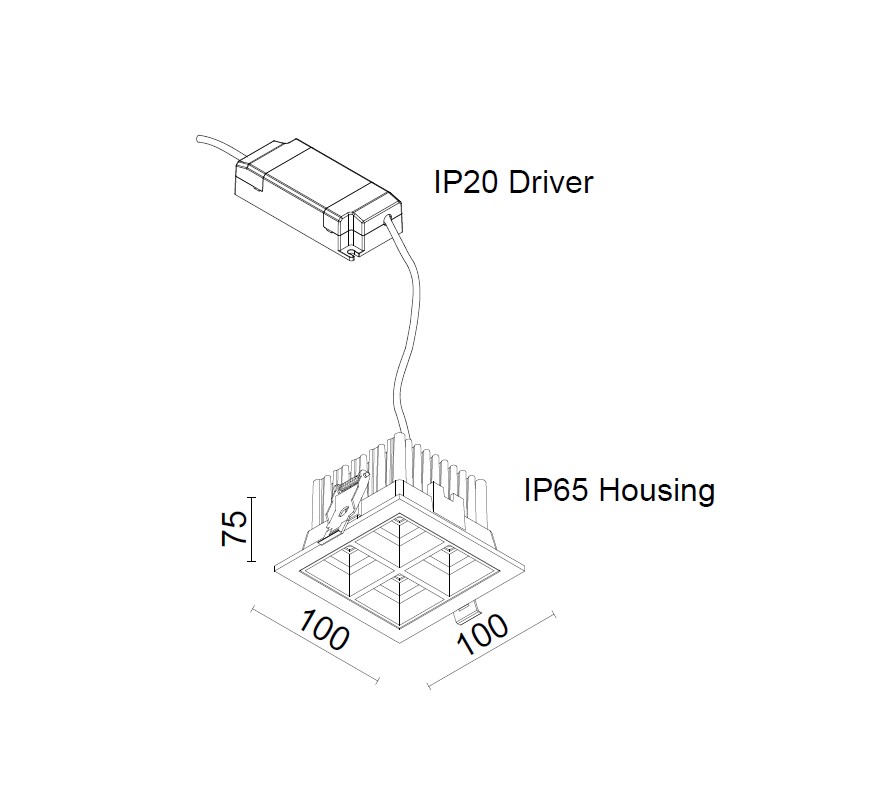

GIZA Recessed 65/20, with a mounting height of 75 mm in indoor wet areas, GIZA Recessed 65/20, with its deeply positioned DARK reflector structure, offers easy installation in Wc and Showers, narrow ceiling spaces. It does not create glare with its deeply positioned reflector structure and provides 50° / 80° light distribution thanks to its highly efficient optical design lenses.
-
Product Description
-
Technicial Specifications
-
Download Center
-
Datasheets
GIZA Recessed 65/20, with a mounting height of 75 mm in indoor wet areas, GIZA Recessed 65/20, with its deeply positioned DARK reflector structure, offers easy installation in Wc and Showers, narrow ceiling spaces. It does not create glare with its deeply positioned reflector structure and provides 50° / 80° light distribution thanks to its highly efficient optical design lenses.
| Housing | Aluminium İnjection Housing |
| Optical | 50° Lens + Reflector (Black) |
| Optical Angles | 50° / 80° |
| IP Protection Class (Housing) | IP65 |
| IK Impact Resistance Class | IK03 |
| Input Voltage | 220-240V AC 50/60 Hz |
| Consumption Power | 8W / 10W / 12W / 15W / 20W / 24W / 28W |
| Light Source | SMD LED |
| Color Temperature | 2700K / 3000K / 4000K / 6500K |
| CRI | >80 / >90 |
| Working Ambient Temperature | -5 °C / +35 °C |
| Body Colors | RAL 9005 / RAL 9006 / RAL 9016 |
| Mounting Type | Plasterboard |
