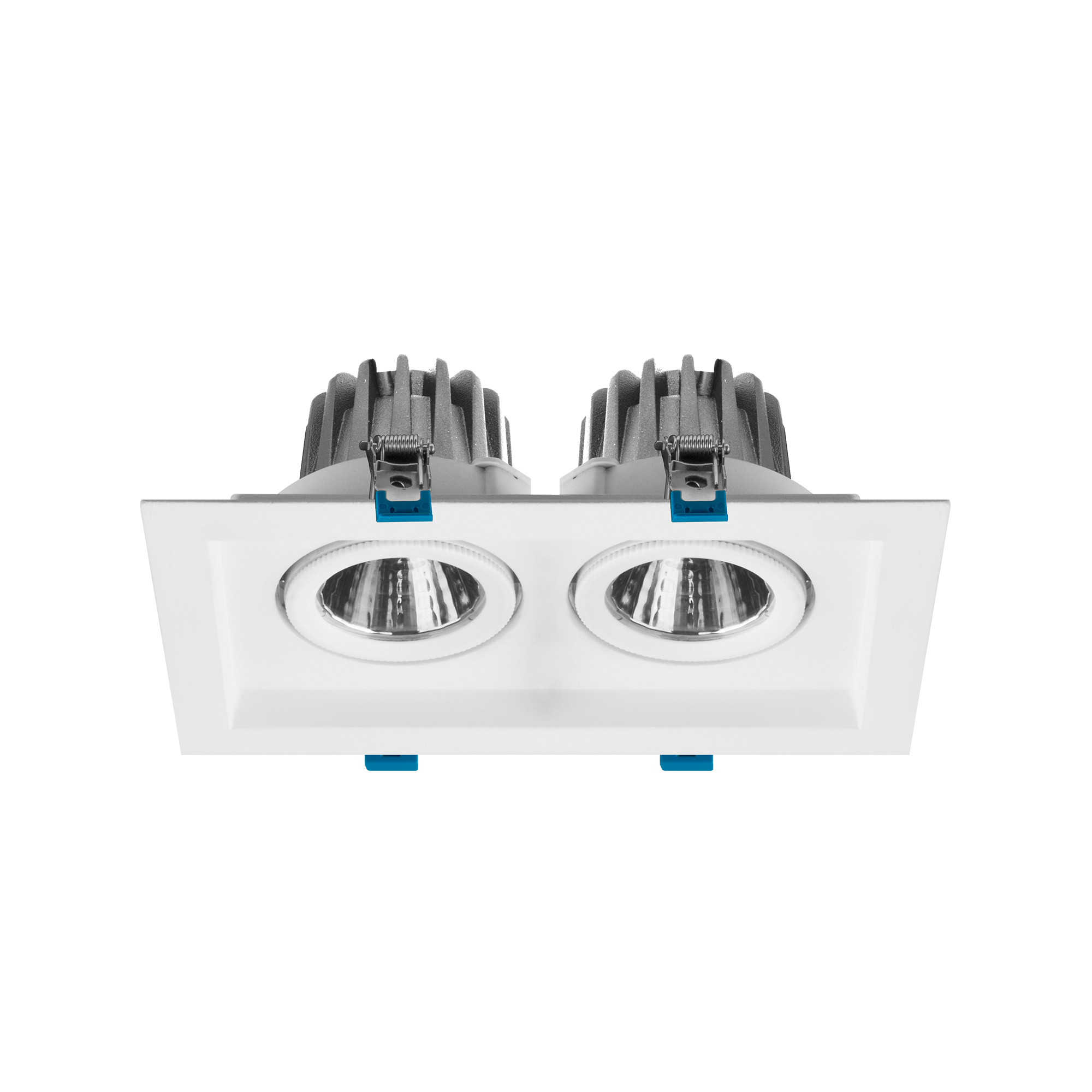

PLANO 2X
PLANO is available in single and double body options. It offers maximum performance with its optical diversity and wide lumen range. Thanks to its biaxial steerable spot mechanism feature; it is ideal for areas where spot lighting is needed such as offices, stores, showrooms and retail.
-
Product Description
-
Technicial Specifications
-
Download Center
PLANO is available in single and double body options. It offers maximum performance with its optical diversity and wide lumen range. Thanks to its biaxial steerable spot mechanism feature; it is ideal for areas where spot lighting is needed such as offices, stores, showrooms and retail.
| Housing | Aluminium Housing |
| Optical System | Reflector |
| Optical Angles | 15°/ 30° |
| Optical Cover | Transparent Diffuser |
| IP Protection Class | IP20 |
| IK Impact Resistance Class | IK03 |
| Input Voltage | 220-240V AC 50/60 Hz |
| Consumption Power | 10 W / 16 W / 20 W |
| Lumen Value | 985 lm / 1576 lm / 1970 lm |
| Source of light | COB LED |
| Color Temperature | 2700K / 3000K / 4000K / 6500K |
| CRI | >80 / >90 |
| Working Ambient Temperature | -5 °C / +35 °C |
| Body Colors | RAL 9005 / RAL 9006 / RAL 9016 |
| Mounting Type | Plasterboard |
